Garage Door Cable Replacement

Your garage door has two steel lift cables — one on each side of the door — that connect the bottom of the door to a cable drum mounted at the top of each vertical track. As your torsion spring winds and unwinds, the cable drums rotate and either wind up or release the cables, which lifts and lowers the door. The cables are what physically hold the weight of the door and transfer the force from your spring to the door itself. Without them, your spring has nothing to pull on and your door cannot move. Both cables work as a pair — they share the door's weight equally and must be matched in length and condition.

Lift cables (sometimes called drum cables) are the primary cables that actually raise and lower your door — these run from the bottom corners of the door up to the cable drums on the torsion shaft. Safety cables are different — they run through the inside of extension springs (on older or non-torsion systems) to contain the spring if it breaks. Modern torsion-spring systems use lift cables only. If you have an older extension-spring setup, you should also have safety cables installed; if you don't, that's a serious safety issue we always correct.

They aren't connected directly — they work as a system. Your torsion spring is wound with stored energy. When the door is released, the spring unwinds and rotates the steel shaft above the door. That shaft has a cable drum on each end. As the drum rotates, it winds the cable, which pulls the door upward. So the spring stores the energy, the shaft transfers it, and the cables do the actual lifting. This is why a broken spring can also damage cables (sudden tension drop), and a frayed cable can put extra stress on a healthy spring (uneven loading). Components fail together more often than people realize.

Properly installed garage door cables typically last 8–15 years depending on usage, climate, and maintenance. Coastal areas like Hercules, Rodeo, and parts of Vallejo see faster wear from salt-air corrosion. Hot inland areas like Antioch, Brentwood, and Vacaville see faster wear from heat-driven lubricant breakdown. Cables typically outlast a single set of torsion springs, which means most homeowners replace cables on their second or third spring replacement — but if a cable shows visible fraying, rust, or damage, it should be replaced immediately regardless of age.

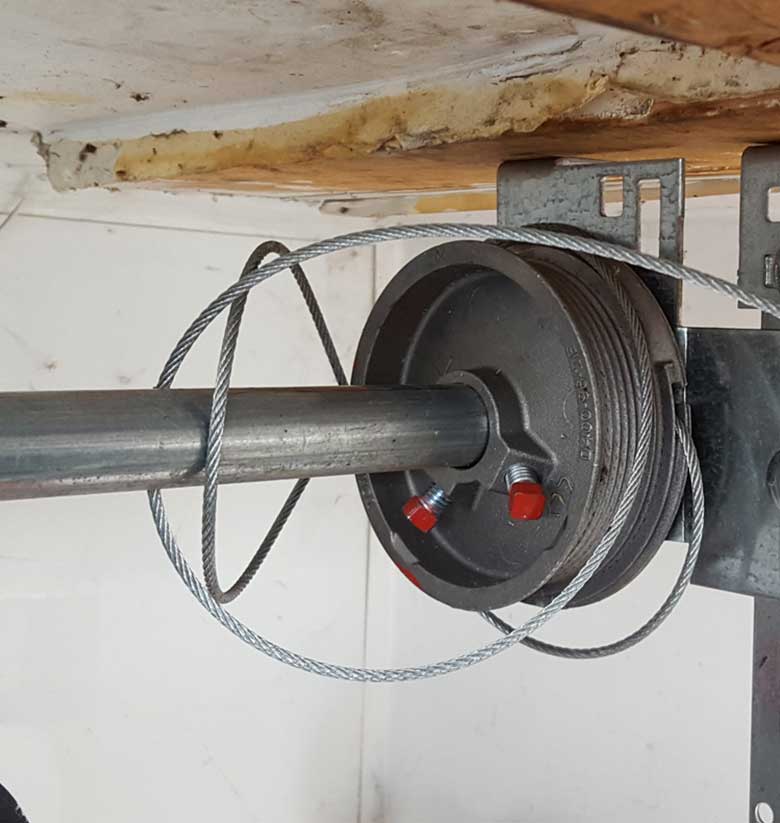

Common warning signs: (1) visible fraying — individual strands of steel poking out from the cable; (2) rust spots, discoloration, or corrosion anywhere along the cable; (3) the cable hanging loose, unwound, or off the drum entirely; (4) your door opens crooked or one side is higher than the other when partially open; (5) a popping or snapping sound when the door operates; (6) the door slamming down or dropping unexpectedly. If you see any of these, stop using your door immediately and call us. A snapping cable under load can cause serious property damage and is dangerous to anyone standing near the door.

Very often, yes. When one cable stretches, frays, or partially fails, that side of the door drops below the other side, and the door tilts as it opens. Other causes include a broken spring on one side of a dual-spring system, or one of the bottom brackets pulling loose. We diagnose all three causes during every service call. Important: never try to manually correct a tilted door — the cable tension is uneven and the door can fall unpredictably. Disengage the opener and call us.

Yes — rust significantly weakens steel cable. Garage door cables are made of multiple steel strands twisted together, and rust eats those strands from the outside in. Even minor surface rust is a sign that corrosion has started, and the cable is no longer at full strength. In coastal areas (Hercules, Rodeo, parts of Vallejo and Benicia), salt-air corrosion is especially aggressive. We recommend immediate replacement once visible rust appears — cables don't recover, they only get worse, and a corroded cable can snap unexpectedly under normal load.

This is one of the worst-case scenarios in our industry, and it's far more common than people realize. When a cable snaps under load, the door can drop suddenly on one side, twist into the track, derail completely, or — in the worst cases — fall under its full weight onto a vehicle, person, or anything underneath. The bottom panel often warps or buckles. Hinges, rollers, brackets, and tracks can be damaged in the fall. We call this a "crashed door" and it's a separate service from a normal cable swap. Repair cost ranges from $149 on the lighter end (cable replacement plus minor realignment) up to $599 on the severe end (multiple damaged components requiring rebuilding). In the worst cases — twisted panels, structural damage, or a door that fell on a vehicle — the door is no longer safe or cost-effective to repair, and full door replacement becomes the right call. This is exactly why we recommend replacing cables at the first sign of fraying or rust rather than waiting for them to fail.

Don't try to operate the door — even manually. A crashed door is unstable and additional movement can cause more damage or injury. Disconnect the opener (pull the red emergency release cord) so it can't be activated accidentally. Document the damage with photos in case your homeowner's insurance covers it. Then call us — we'll come out same-day, assess what's repairable versus what isn't, and give you a clear written quote with options. Most crashed doors can be repaired for $149–$599 depending on damage extent. If the door is beyond economical repair, we'll quote a full replacement and apply any salvageable parts toward your new door installation.

Standard cable replacement starts at $149–$180 when the cable is the only issue. However, cable replacement very commonly comes paired with crashed door service — when a cable snaps under load, it often pulls the door off the tracks, twists the bottom panel, or damages the bottom brackets, hinges, or rollers. Crashed door service typically runs $149–$599 depending on the extent of the damage. In severe cases — twisted panels, structural damage to the door, or a fully derailed door that fell on a vehicle — the door may not be repairable and a full replacement is the better option. We always provide a written quote before any work begins, with clear options if multiple repair paths are possible. See our full pricing page.

Yes — almost always. Both cables are the same age, have completed the same number of cycles, and have been exposed to the same wear conditions. When one shows damage, the other is typically right behind it. Replacing both at the same time costs only slightly more than replacing one and prevents being stranded again in a few months when the second one fails. We'll explain the math during the visit so you can make an informed decision, but the honest answer is: replacing both is almost always the right call.

A standard cable replacement takes 30–60 minutes on-site once we arrive. The actual cable swap is straightforward — the time goes into safely de-tensioning the system, replacing the cables, re-tensioning the springs, balancing the door, and verifying the opener's force settings. We carry common cable sizes on the truck so the vast majority of jobs are completed in a single visit without ordering parts. Crashed door service takes longer — typically 1–3 hours depending on what was damaged when the cable snapped (panels, hinges, rollers, brackets) — but we still aim to complete most crashed door repairs in a single visit.

Yes — guaranteed same-day service when you call before 6 PM, 7 days a week. Cables are one of our most common service calls and we stock parts on every truck. Most calls in our core service area get a tech on-site within 60–90 minutes. Call or text (925) 316-8384.

Yes — we always perform a full system inspection during any service call. Cables, springs, rollers, hinges, tracks, and the opener all work together, and a problem with one component is usually a sign that others are wearing out. We'll show you anything we find and tell you honestly what needs attention now versus what can wait. We never recommend repairs that aren't needed — but we also won't let you leave the call without understanding what's actually going on with your door.

Strongly not recommended. Replacing a cable correctly requires safely de-tensioning the torsion spring first, which involves the same dangerous spring tension that makes DIY spring replacement unsafe. If you try to remove a cable while the spring is still wound, the cable will snap free under load and the door will drop instantly — potentially on you, your vehicle, or anything underneath. Even if you successfully remove the old cable, installing the new one requires correctly seating it on the drum, matching the length to the other side, and re-tensioning the spring to balance the door. The savings versus our service price isn't worth the risk of injury or a far more expensive emergency repair.

Technically yes, but it almost always comes off again because something else is wrong — usually the door has lost balance, the spring tension is off, or a roller has come out of the track. Just resetting the cable without addressing the underlying cause is a temporary fix that fails within days. We diagnose the actual root cause, fix it, and reset the cable correctly so it stays put. Often the underlying issue is something simple and inexpensive.

Yes. A frayed cable can: (1) snap under normal load and cause the door to drop, potentially damaging vehicles or injuring anyone underneath; (2) cause the door to operate unevenly, putting stress on the opener motor and shortening its life; (3) come off the drum entirely, leading to an off-track door. The biggest risk is the unpredictability — a frayed cable might fail in a week or in a year. Once you see fraying, treat it as urgent. We can be there same-day.

Yes — California Contractor's License #1113495. Fully licensed, bonded, and insured. You can verify our license directly on the California Contractors State License Board website. We also carry general liability insurance and workers' compensation. Garage door work involves significant tension and weight — never let an unlicensed contractor work on your door. If something goes wrong, you have no recourse.

Three things: (1) Keep the cables clean and dry — wipe them down occasionally with a dry cloth and avoid spraying water near them. (2) Use a quality silicone-based or lithium-based garage door lubricant on the rollers and hinges (never on the cables themselves — lubricant attracts dirt that accelerates wear). (3) Have your door professionally inspected once a year. We can spot fraying, corrosion, or drum wear before it causes a failure. Annual maintenance is far cheaper than emergency cable replacement plus collateral damage if a cable fails at the wrong time.
